TD2300 – Transducer for DNG-2300

The TD2300 vibroacoustic transducer is part of a complete counter surveillance protection system. It inducts noise into walls, floors, ceilings, windows and other surfaces of the building, preventing leakage of sound signals. To provide a sufficient level of protection the system consists of a number of transducers installed on different structures in the room and is connected to a generator.

FEATURES

– Attractive design, looks good in any interior
– High power output, combined with compactness
– Fits equally well on windows, walls and other structures
– The included mounting set makes it possible to install the transducer on any surface
– Passes most of the generated noise into the desired construction in the form of vibration, while also producing less audible interference
– The frequency characteristics optimally correspond to the spectrum of human’s speech
– Perfectly suited for the DNG 2300 white noise generator

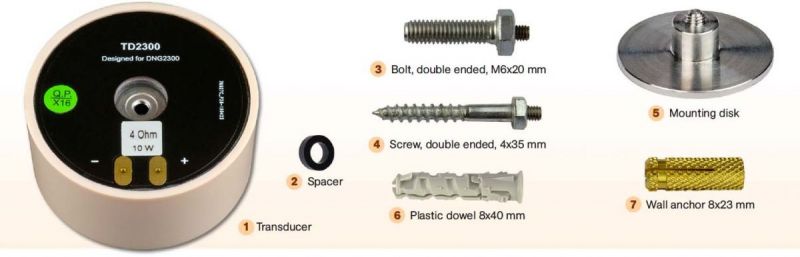

SUPPLIED SET

Transducer – 1 pc
Spacer – 1 pc
Bolt, double ended, M6x20 mm – 1 pc
Screw, double ended, 4×35 mm – 1 pc
Plastic dowel 8×40 mm – 1 pc
Mounting disk – 1 pc
Wall anchor 8×23 mm – 1 pc

Technical Specifications
Impedance	4 Ohm
Frequency response	58 Hz – 12 kHz
Power	10 W
Weight	252 g
Dimensions	56 x 27 mm
